Battery breaker

€23.80
inkl. MwSt.** Shipping excluded

Lieferzeit: 2 - 5 Tage *

With the battery interrupter you can adapt conventional battery-powered toys or devices yourself.

The battery interrupter is simply clamped between battery and contact. So prepared, our separately available probes, for example Smoothie or Big Buddy connected to the battery interrupter to activate the toy or device by pressing a button.

Optional available "Great" for baby and monocells, or "Small" Lady and Mignon Cells (AA and AAA)


In Stock

Battery type:

Quantity

Battery interrupter optional in two sizes

The battery interrupter is a connection piece to make battery-operated toys and devices, in combination with separate buttons and sensors can be operated by pressing a button.

Toys and appliances using the battery interrupter adapt itself.

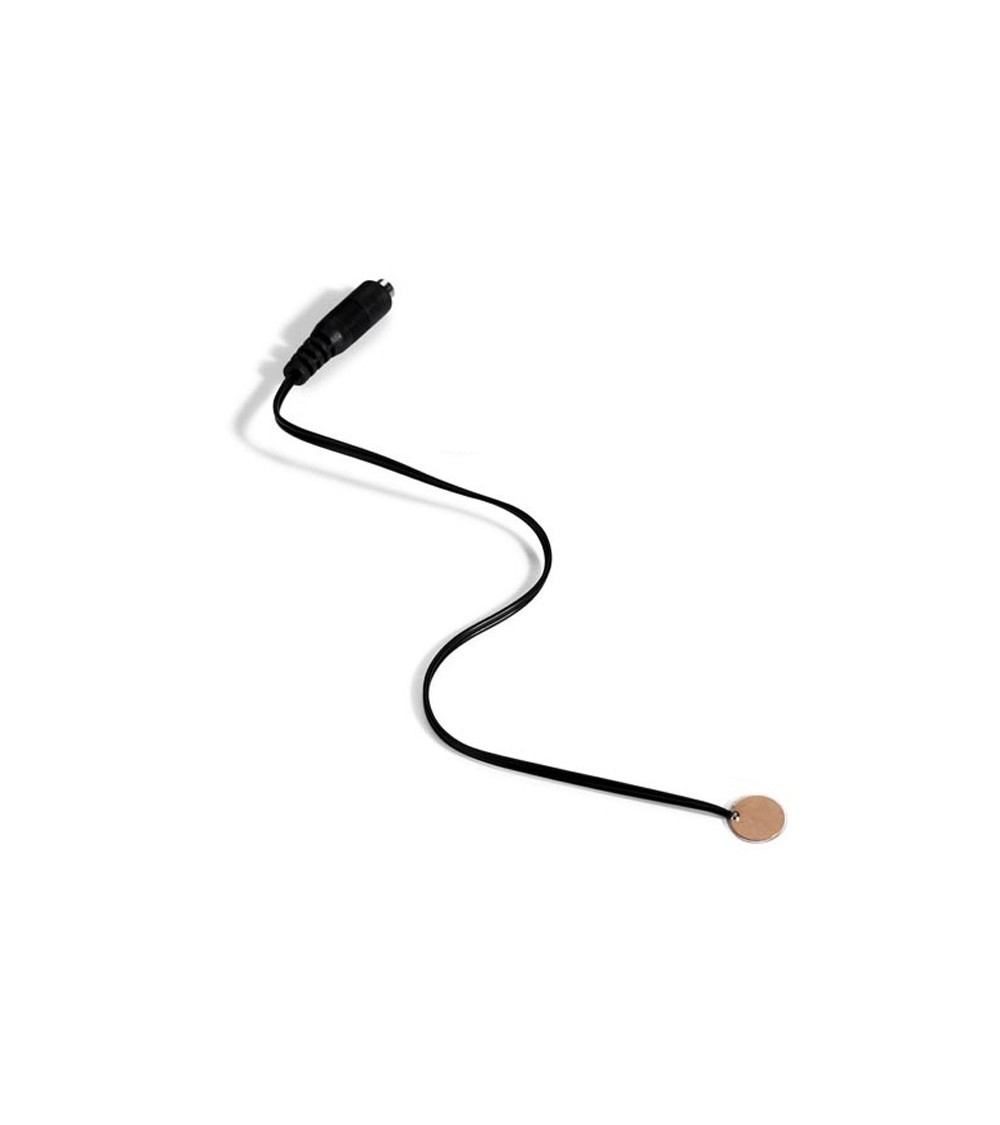

The battery interrupter consists essentially of three parts:

1 Incubator platelets

2.) Cable

3 Connectors 3.5 mm

First, place the interrupter plate in the battery compartment of the device or toy to be adapted, exactly between the battery and the contact. Make sure that the battery compartment is still easy to close. If it doesn't fit perfectly, you can run a tiny gap in the place where the cable runs.

Once the battery compartment is closed, connect the battery interrupter to a suitable pushbutton via the jack plug. And voilà: They're done! Your device is now ready for use and can be put into operation.

So prepared, games and devices can be made more accessible to people with disabilities.
In particular, children with disabilities benefit from this, since this makes it possible to use a plurality of toys which, without this, can be controlled and used only with difficulty, because the operating knobs are too small.

Tip: If you like it more practical, we also offer already fully adapted devices, as well as toys.
You can click here, to discover a selection of these products.


Further information:

Our battery interrupters are available in two sizes.

"Great" for baby and monocells"

  • Interruptor platelets: approx. Ø 25 mm
  • Breaker plate thickness: approx. 0.4 mm
  • Cable length: approx. 270 mm
  • Plug: 3.5 mm plug mono
  • Total length: approx. 330 mm

"Small" Lady and Mignon Cells (AA and AAA)

  • Interruptor platelets: approx. Ø 13 mm
  • Breaker plate thickness: approx. 0.4 mm
  • Cable length: approx. 270 mm
  • Plug: 3.5 mm plug mono
  • Total length: approx. 310 mm

Scope of delivery: 1 piece battery interrupter by choice

Ringelfee
62-100004
